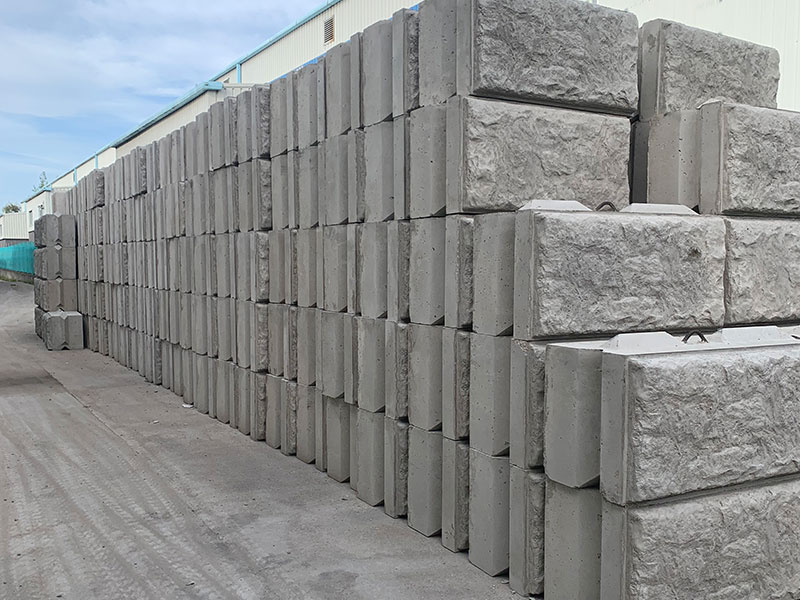

Vee-Rock™ Interlocking Concrete Blocks

Following on from customer requests for a Vee™ Interlocking Block with a decorative face, we have introduced Vee-Rock™, which offers the benefits of Vee™, with a rock-faced finish, enhancing the aesthetic appeal of any walling structure.

Applications

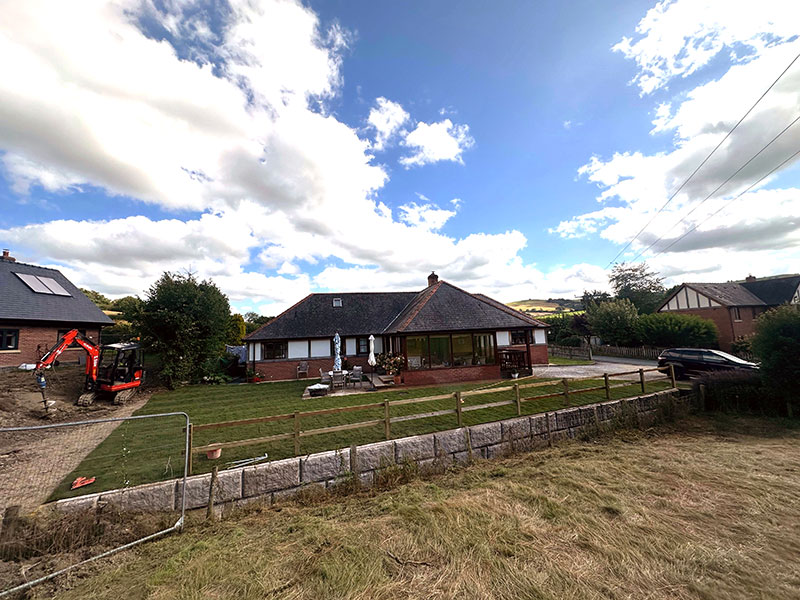

  • Landscape gardening and housing developments
  • Railway embankments
  • Roadside structures
  • Commercial and industrial projects
  • Flood plain protection

Key Features

  • Durability and Strength: Vee-Rock™ blocks are cast using our high-strength 50N/mm² concrete, ensuring exceptional robustness and longevity with a design life of 120 years.
  • Versatility: This engineered walling solution is suitable for a wide range of projects.
  • Rapid Construction: One of the system’s standout features is its impressive construction speed (up to 70m² per day). This combined its appearance offering a compelling alternative to other walling materials, including gabion baskets.
Block Type Product Drawing L x W x H (mm) Weight
Standard Block
View PDF
 1220 x 585 x 610 970kg
Half Block
View PDF
 610 x 585 x 610 485kg
Top Block
View PDF
 1220 x 585 x 610 795kg
Half Top Block
View PDF
 610 x 585 x 610 400kg
Corner Block
View PDF
 1220 x 585 x 610 915kg
Top Corner Block
View PDF
 1220 x 610 x 585 775kg

Engineering Support

Full engineering design and structural calculations are available through independent structural engineers. Concept drawings and quotes can be provided upon request, ensuring comprehensive support for your project.

For those interested in learning more about the Vee-Rock™ system or requesting additional information, we are ready to help.
